Client
Deloitte UK
Info
Role
Product Designer
Timeline
3 weeks
Focus
Design Systems, Accessibility, Brand Alignment
Platforms
Web applications
Team
Product Owner
Project Manager
Tech Lead
Developers
(Back/Front - End, QAs)
Context
The Project
During my tenure at Deloitte Design System team, I was tasked with solving a critical design challenge that was impacting our entire product ecosystem.
Our diverse portfolio of applications suffered from inconsistent colour usage, accessibility issues, and a little disconnect from Deloitte's brand identity.
What started as a colour audit evolved into a comprehensive design system transformation that would redefine how our teams approach visual design across all platforms.
How might we create a colour system that scales with our growing product portfolio while maintaining accessibility and brand integrity?
Outcome
The redesigned colour system established a scalable, accessible foundation that reduced design decision fatigue by 70%, improved WCAG compliance across all platforms, and created a unified visual language that strengthened brand consistency while empowering teams to build faster and more cohesively.
UI Audit

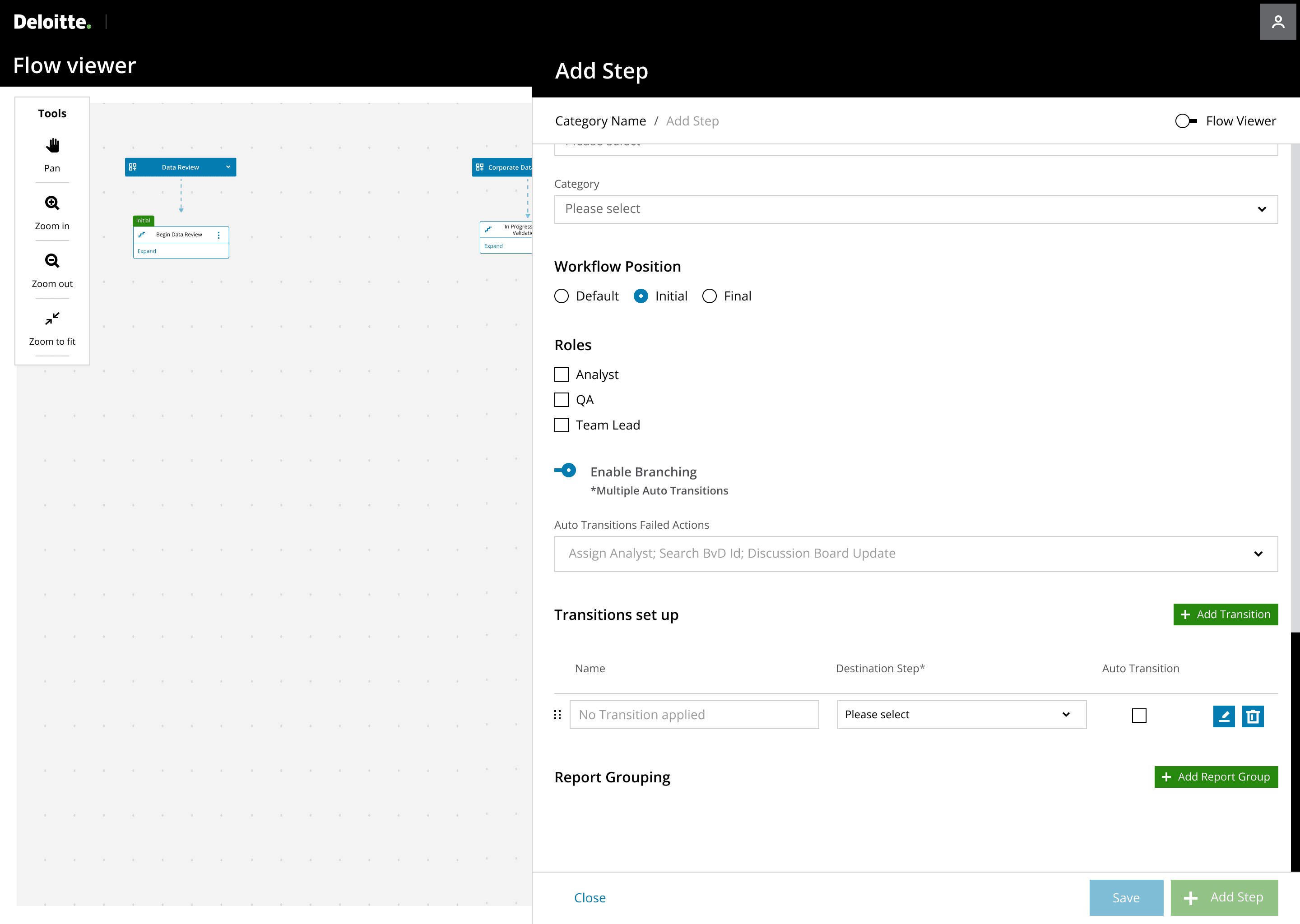

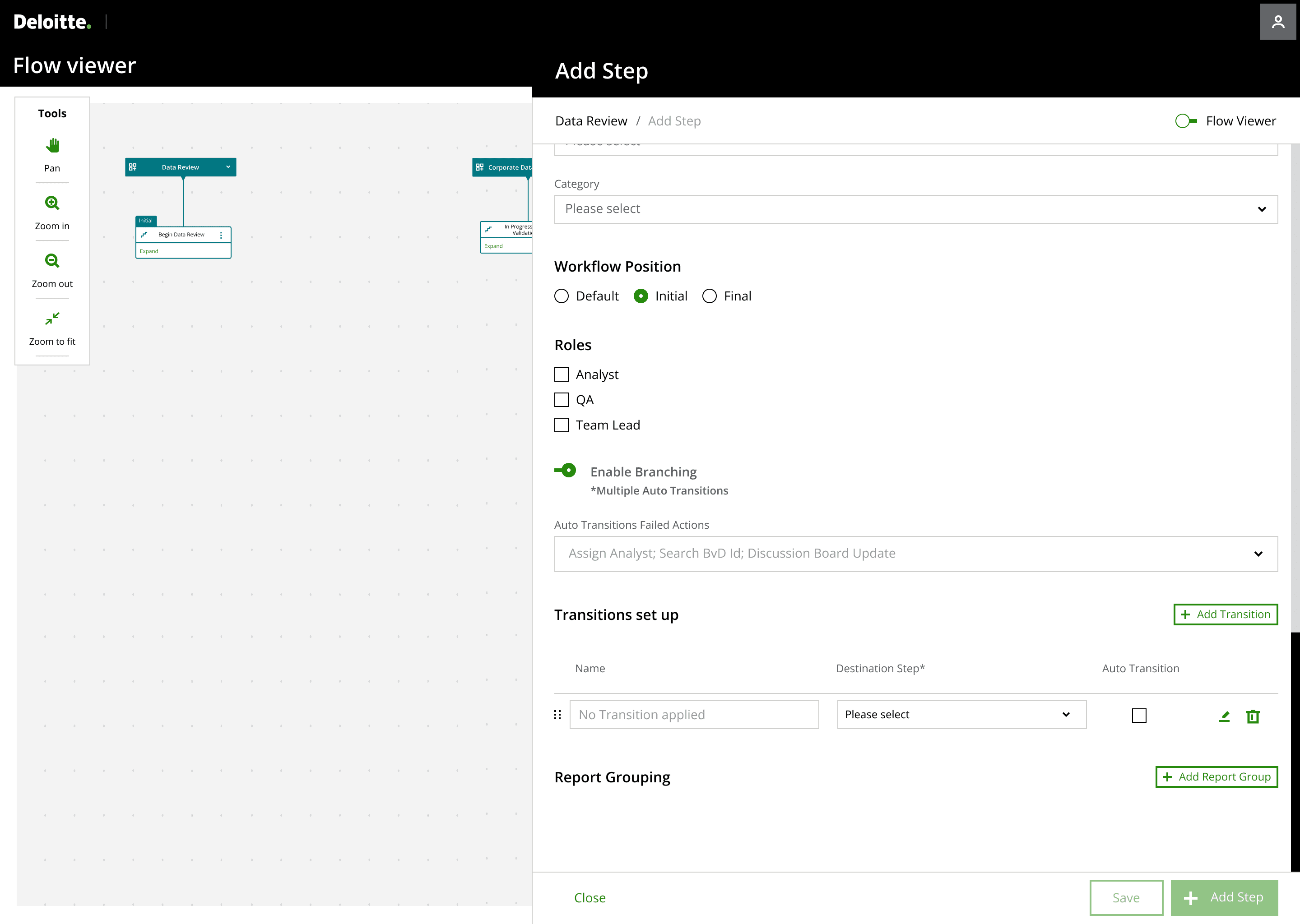

This example illustrates how platforms were being shipped without proper design system foundations, resulting in interfaces that may function but fail to provide optimal user experience or brand consistency. The lack of systematic colour guidelines creates maintenance challenges and inconsistent user interactions across the platform.
Existing colour palette
The existing colour system shown here represented Deloitte's official brand palette, carefully developed by their branding team for traditional marketing and print applications. This comprehensive palette included over 40 colour variations organised into primary, secondary, and tertiary categories, each with specific hex values and naming conventions.
Primary palette
greens and blues
$deloitte-green
#86bc25
$primary-teal
#0D8390
$primary-blue
#007CB0
$primary-green-1
#43B02A
$primary-green-2
#26890D
$primary-green-3
#046A38
base & Alerts colours
$black
#000
$gray-8
#27282A
$white
#fff
$red
#DA291C
$orange
#ED8B00
$yellow
#FFCD00
secondary palette
Background & Greys
$background-gray-1
#FAFAFA
$background-gray-2
#F5F5F5
$background-gray-3
#EBEBEB
$gray-1
#D0D0CE
$gray-2
#BBBCBC
$gray-3
#A7A8AA
$gray-4
#97999B
$gray-5
#75787B
$gray-6
#63666A
$gray-7
#53565A
bright shades
$bright-green
#0df200
$bright-teal
#3efac5
$bright-blue
#33f0ff
Tertiary palette
greens, TEALS and blues
$secondary-green-1
#E3E48D
$secondary-green-2
#C4D600
$secondary-green-3
#009A44
$secondary-green-4
#2C5234
$secondary-teal-1
#DDEFE8
$secondary-teal-2
#9DD4CF
$secondary-teal-3
#6FC2B4
$secondary-teal-4
#00ABAB
$secondary-teal-5
#0097A9
$secondary-teal-6
#007680
$secondary-teal-7
#004F59
$secondary-blue-1
#A0DCFF
$primary-teal
#0D8390
$secondary-blue-2
#62B5E5
$secondary-blue-4
#0076A8
$secondary-blue-5
#005587
$secondary-blue-6
#012169
$secondary-blue-7
#041E42
Part One:
Uncovering the chaos
1.1 The Challenge Revealed
I began this project by conducting a comprehensive audit of our existing applications. What I discovered was more complex than anticipated: our teams were struggling with an overwhelming palette of colours that lacked structure, purpose, or accessibility guidelines. The existing system, originally designed for print materials, simply wasn't meeting the needs of our digital-first product environment.
1.2 Understanding Current Behaviour
How are teams currently using our colour system?
Designers were making ad-hoc colour decisions due to unclear guidance
Developers were implementing inconsistent colour values across platforms
Brand colours were being misused or ignored entirely
Accessibility requirements were often overlooked during implementation
1.3 Identifying User Pain Points
Through interviews with 10 designers and 5 developers, several critical issues emerged:

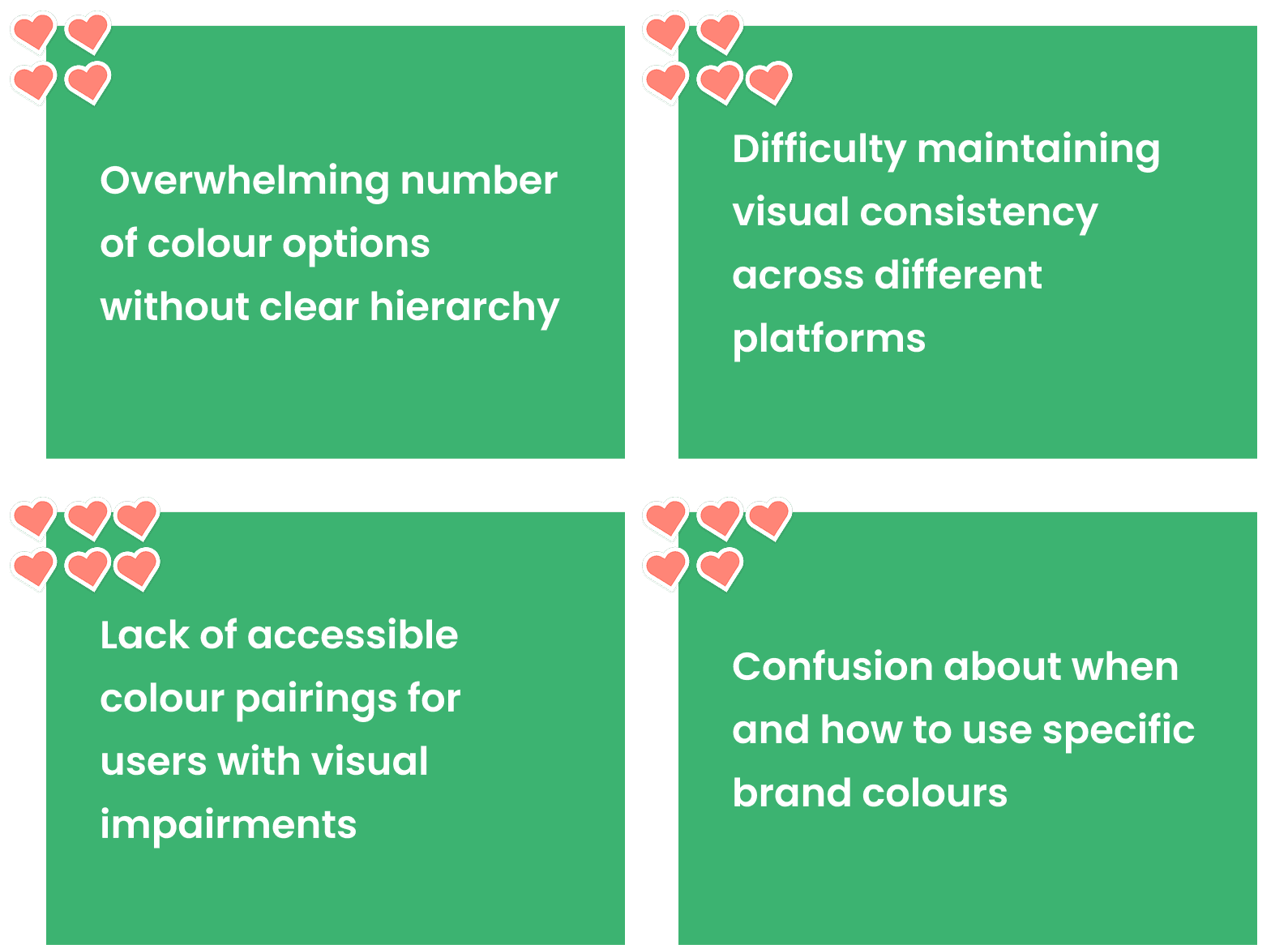

Designer Frustrations:

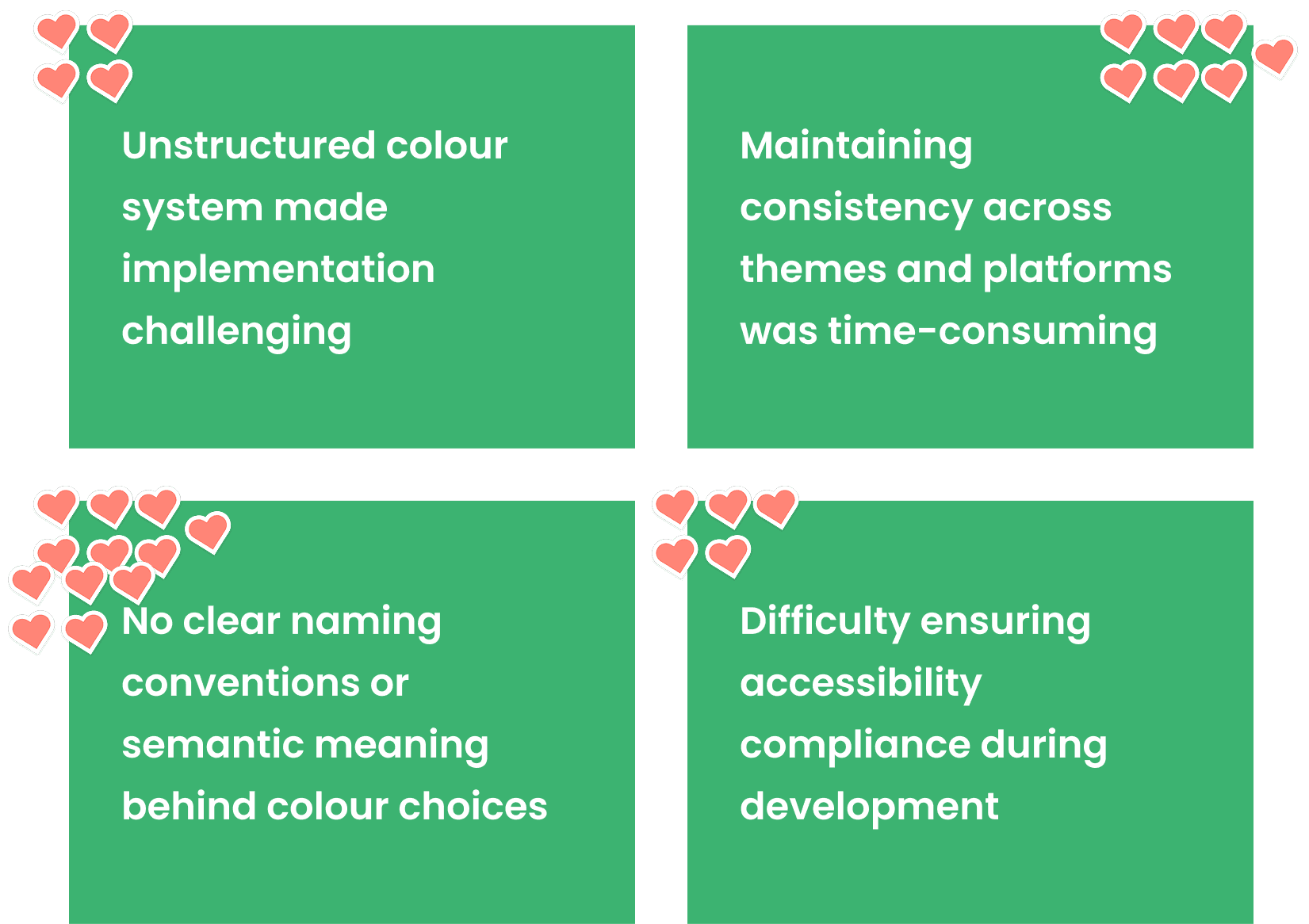

Developers Frustrations:
These pain points highlighted a fundamental issue: our colour system was creating barriers rather than enabling efficient, accessible design and development.
The feedback demonstrated an urgent need for a more structured, semantic approach that would serve both design creativity and development efficiency while prioritising accessibility from the ground up.
1.4 The Decision Point
Part Two:
Building the Foundation
2.1 Collaboration Strategy
Working closely with Deloitte's Brand team became crucial early in the process. The existing colour palette was optimised for print applications and needed fundamental adaptation for digital environments. This collaboration ensured that our new system would maintain brand integrity while serving the practical needs of web applications.
2.2 Research-Driven Design Decisions
Through my research, I identified key user stories that would drive our design decisions:
Part Three:
Designing the Solution
3.1 Key Feature 1 - Semantic Colour Roles

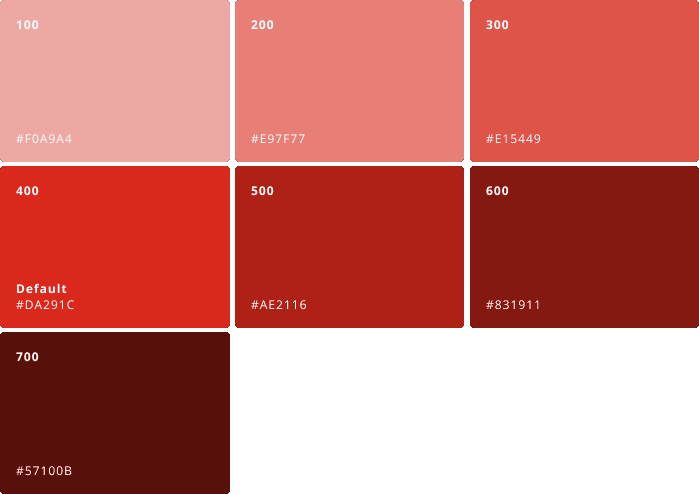

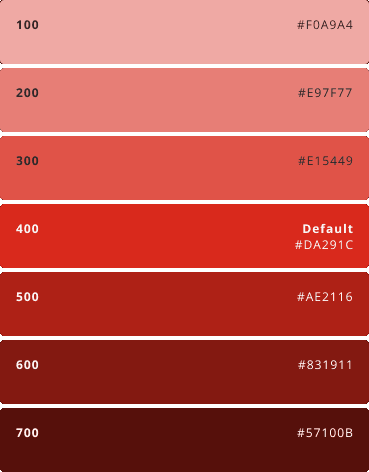

The biggest breakthrough was establishing a rule of 100 that redefined colours with clear semantic roles. Expanding the spectrum of existing colours provided flexibility when choosing and forming colour groups, and instead of arbitrary names, each colour now served a specific purpose:
Primary Colours: Core brand colours for key actions and brand moments
Secondary Colours: Alert colours. Success, warning, error, and information states
Neutral Colours: Typography, backgrounds, and structural elements
Data Visualisation Colours: Specially curated palette for charts and graphs
Primary COLOURS
Secondary Colours
Neutral Colours
Graph and Visualisation Colours

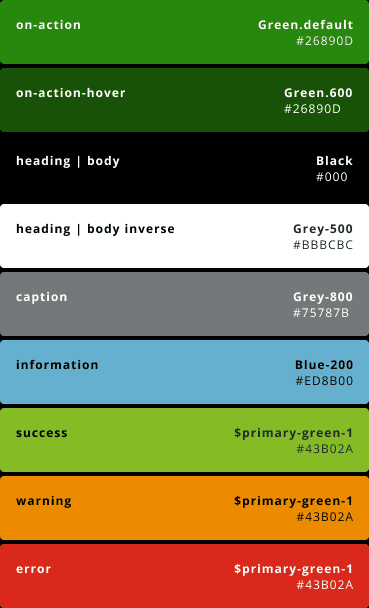

3.2 Key Feature 2 - The Token Architecture Strategy
I developed a three-tier token system that would serve different user needs:
Brand Tokens: The foundational palette containing all approved colours

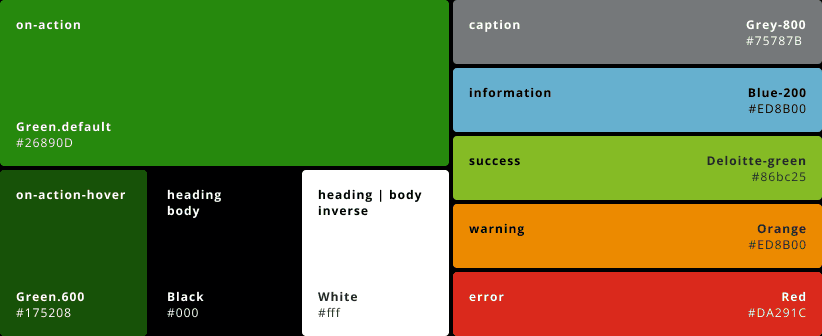

Alias Tokens: Semantic groupings that communicate the colours' purpose and usage
Mapped Tokens: Context-specific applications for different themes and components
This structure allowed for maximum flexibility while maintaining strict governance over colour usage.
3.3 Key Feature 3 - Theme Flexibility
The new system supported multiple built-in themes, allowing for:
Light and dark mode compatibility
High contrast options for accessibility
Brand-specific themes for different product lines
3.4 Key Feature 2 - Accessibility-First Approach

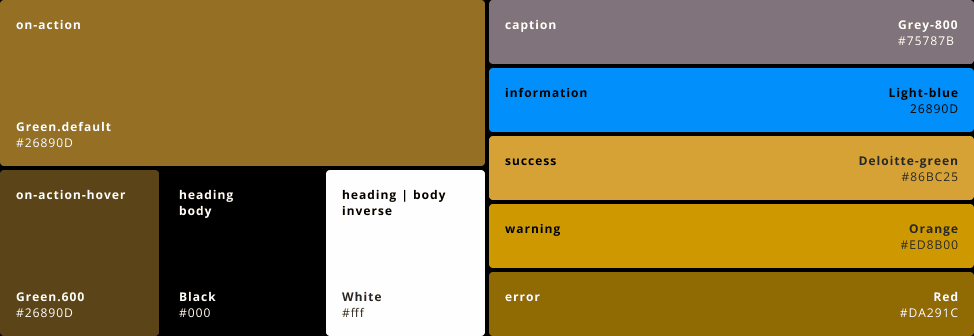

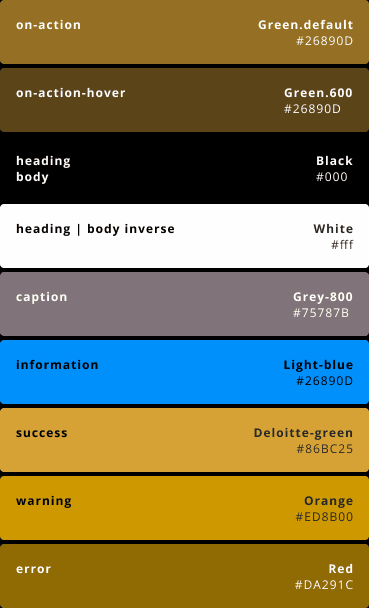

Every colour combination was tested across multiple visual impairment scenarios:
Protanopia (red-green colour blindness)
Deuteranopia (green colour blindness)
Tritanopia (blue-yellow colour blindness)
This testing revealed that several bright colours in previous colour palate were indistinguishable to users with colour vision deficiencies, leading to strategic refinements that improved usability for all users.
Graphs & Visualisation colours
The appropriate use of certain colours in the design system was critical in making data visualisation successful by ensuring adequate contrast from primary colour groups, limiting single-colour usage per chart to maintain brand consistency, and applying semantic colour meaning across different chart types for intuitive user comprehension.
Popular times
Tuesdays
peak
9a
12p
3p
6p
9p
Sales by product
Alpha
Beta
Gamma
Delta
Company performance
1500
1000
500
0
2013
2014
2015
2016
Sales
Expenses
Users in the last 30 days
600
400
200
0
Nov 5
15
25
Dec 5
Category A
Category B
Category C
Before and After
We consolidated the interface from competing blue and green primary colours to a unified theme system, establishing a primary colour as the singular colour for all interactive elements while keeping graph and visualisation elements distinctive, creating stronger brand consistency and reducing cognitive load for users.
Part Five
Implementation and Impact
5.1 Rollout Strategy
The implementation was carefully orchestrated across three phases:
Phase 1: Documentation and training for design and development teams
Phase 2: Implementation in new projects and major updates
Phase 3: Gradual migration of existing applications
5.2 Measuring Success
In the first 2 months after rolling out the new colour system.
Quantitative Results:
70% reduction in colour-related design decisions during project work
100% WCAG AA compliance across all new implementations
60% faster developer implementation of colour changes
40% reduction in colour-related bug reports
Qualitative Improvements:
Increased confidence in design decisions
Stronger brand consistency across all touch-points
Improved collaboration between design and development teams
Better accessibility outcomes for end users
5.3 Long-term Impact
The new colour system became the foundation for broader design system improvements, enabling:
Faster onboarding of new team members
More efficient cross-team collaboration
Stronger brand presence in the market
Better user experiences across all applications
Key Learnings
This project reinforced several important principles about design systems work:
1. Systems thinking requires deep user empathy - Understanding the needs of internal users (designers and developers) was just as important as considering end-user needs.
2. Accessibility isn't optional - Building accessibility into the foundation of the system was far more effective than trying to retrofit it later.
3. Change management is design work - The success of a design system depends heavily on adoption, which requires careful attention to communication, training, and transition planning.
4. Collaboration amplifies impact - Working closely with brand, engineering, and product teams created better outcomes than working in isolation.
Through this project, I learned that effective design systems aren't just about creating beautiful, consistent interfaces—they're about empowering teams to work more efficiently while ensuring that every user interaction reflects both usability best practices and brand values.
The true measure of success wasn't just in the visual improvements, but in how the system enabled better collaboration and more inclusive user experiences across our entire product ecosystem.
